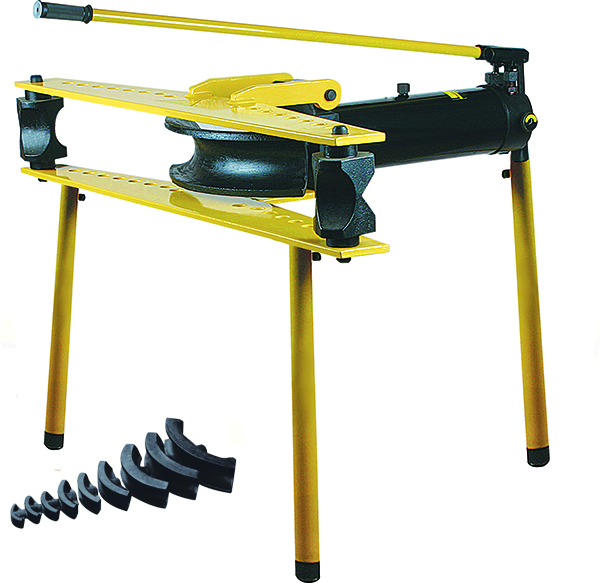

Hongli HHW-2J Manual Hydraulic Pipe Bending Machine with Tri-stand for Steel Pipe up to 2"
Featuring
1. Simple manual hydraulic operation for easy use.
2. Completely manual hydraulic operation so external power is not needed .
3. Rotating stand locks in three positions for stability and versatility.
4. Heavy-duty hydraulic cylinder capable of bending schedule 40 pipe.
5. Different standard bending dies included (1/2", 3/4", 1", 1-1/4",1-1/2", 2").
6. Pipe stands are also included for better bending experience.
Specifications
Model: HHW-2J
Pipe wall thickness :2.75-4.5 mm
Bending dies: 1/2",3/4",1",1 1/4",1 1/2",2"
Max stroke : 250 mm
Accessories
| HHW-2J | 1/2",3/4",1",1 1/4",1 1/2",2" bending dies |
| HHW-3J | 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3" bending dies |
| HHW-4J | 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4" bending dies |
Ordering Information
| Catalog No. | Description |
| 2521400 | HHW-2J complete set with all dies |
| 2521500 | HHW-3J complete set with all dies |
| 2521600 | HHW-4J complete set with all dies |
Packing
| Model | G.W | Packing size |
| HHW-2J | 53 kg | 73*32*20 cm |
| HHW-3J | 105 kg | 94*40*21 kg |
| HHW-4J | 155 kg | 118*46*23 cm |

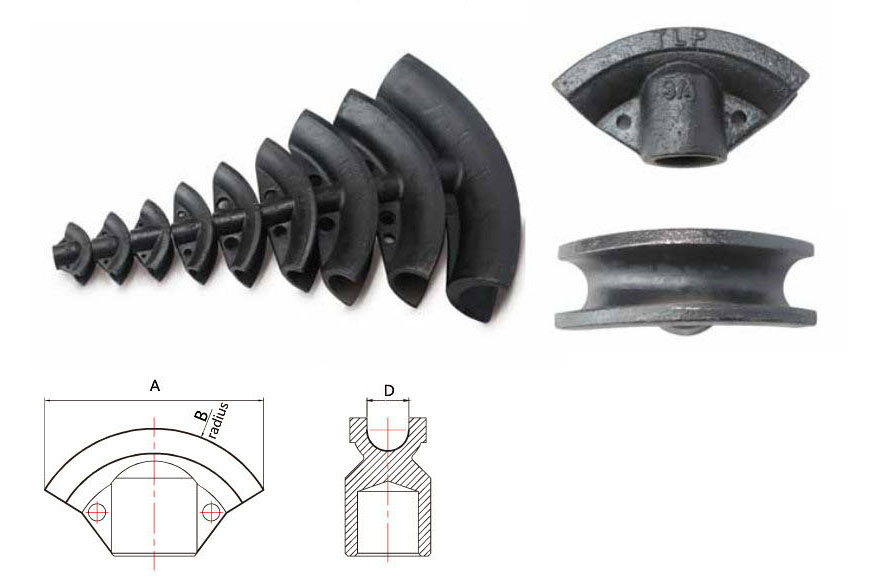

More Information of Pipe Bending Dies
Bending Dies Size
(Inch) | A
(mm) | B
(mm) | Minimum Bend Radius
(mm) | D
(mm) | Pipe Schedule | Wall Thickness
(mm) |
| 1/2" | 115 | 67.5 | 50.2 | 22 | 40 | 2.8 |
| 80 | 3.7 |
| 3/4" | 131 | 84.5 | 66 | 28 | 40 | 2.9 |
| 80 | 3.9 |
| 1" | 147 | 96.5 | 75.4 | 34 | 40 | 3.4 |
| 80 | 4.5 |
| 1 1/4" | 195 | 134 | 108.7 | 43 | 40 | 3.6 |
| 1 1/2" | 242 | 162 | 133.5 | 50 | 40 | 3.7 |
| 2" | 297 | 238 | 199.2 | 62 | 40 | 3.9 |
| 2 1/2" | 380 | 257 | 209 | 79 | 40 | 4.5 |
| 3" | 436 | 390 | 335 | 90 | 40 | 4.5 |
| 4" | 555 | 450 | 400 | 110 | 40 | 5 |
HS CODE : 8462299000
