Hongli SQ80D1 Rigid Electric Pipe Threader Induction Type 1/2 Inch To 3 Inch

Product Categories
Hangzhou Hongli Pipe Machinery Co., Ltd.
Contact Now

Hongli SQ80D1 Rigid Electric Pipe Threader Induction Type 1/2 Inch To 3 Inch

  • 1
  • 2

Brand Name : Hongli

Model Number : SQ80D1

Place of Origin : Zhejiang , China

MOQ : 10 sets after sample order

Price : can negotiate

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50000 sets per month

Delivery Time : 7-30 days as per your order

Packaging Details : one set per plywood case , packing size : 94*60*62 cm , packing weight : 121 kg

Product Name : SQ80D1 Electric Pipe Threading Machine

For Pipes : 1/2"-3" / 12-80 mm

Threads Type : BSPT , NPT

Motor : 750 W induction type

Spindle Speed : 26 / 11 RPM

Voltage & Frequency : 110 V - 60 Hz / 220 V - 50 Hz

Color : Standard with yellow, red or blue for option as per your quantity need

Contact Now

Hongli SQ80D1 Cost Effective Electric Pipe Threading Machine for Steel Pipe 1/2 Inch to 3 Inch

Specifications

Motor: 750 W induction, 50/60 Hz

Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional

Spindle Speed: 26 /11 RPM

Front Chuck: Hammer type with replaceable rocker action jaw inserts.

Rear Centering Device: Cam action.

Oiling System: Through die head, with integral oil reservoir.

Pump: Self-priming constant flow.

Ordering Information

Catalog No. Model No. Description
SQ80D1 110 V, 60 Hz
SQ80D1 220 V, 50 Hz

Packing

Model No. G.W. N.W. Packing
SQ80D1 121 kg 100 kg 94*60*62 cm

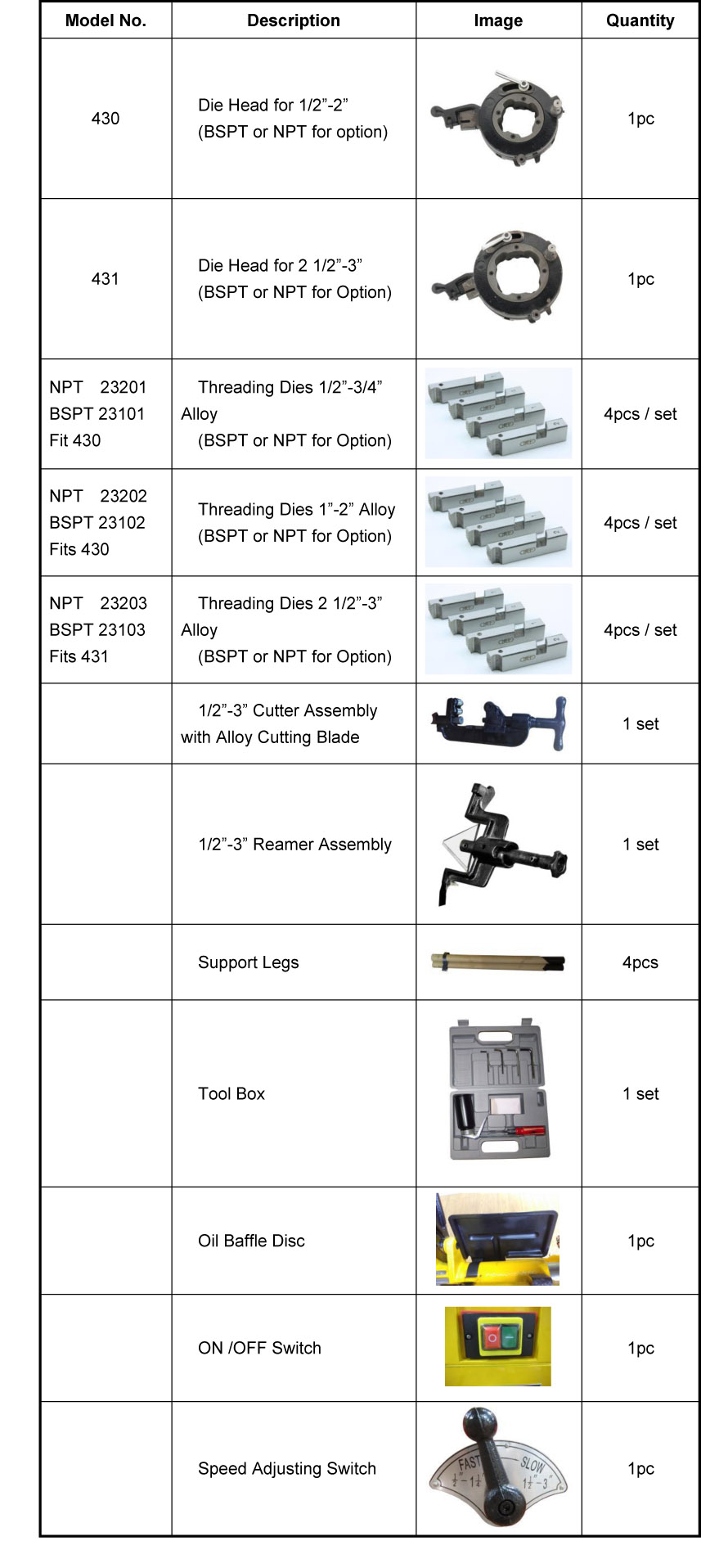

Standard Spares for SQ80D1 Compact Pipe Threading Machine

Hongli SQ80D1 Rigid Electric Pipe Threader Induction Type 1/2 Inch To 3 Inch
