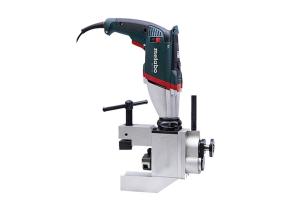

Hongli C-Automatic Feed Electric Pipe Beveling Machine / Large Pipe Beveling Machine
Product Description
1. Automatic feeding. more convenient.
2. Aluminum body, suitable for working aloft.
3. Pipe Out-mounted, self centering, secured clamping,easy to operate
4. Bevel the pipe in the narrow space and small size pipe
The second generation product of C-Narrow Design Pipe Beveling Machine, more compact structure, more protable.
This machine is designed for pipe end bevelling of small diameter, pipe out-mounted compact installation. It is used in pipe end bevelling process of professional equipments and on-site overhaul, e. G. Water cooled wall, overheater, reheater, fuel economizer, boiler and fire thermo electricity, etc. It meets the requirement of process: Narrow space of on-site repair and large scale of repairing.
High-quality bevelling tool which can process different grades of carbon steels, alloyed steels, stainless steels, and other materials of metal pipes.
An outside caliper is fixed in proper position, simple and light, precise centering, steady mount and convenient operation.
It is equipped with exclusive motor made by Germany Metabo Company, with excellent performance and durable use.
Specifications
Drive by METABO motor, AC 220~230V, 50~60Hz.1.1KW, has no pneumatic model.
Beveling Types
other bevel angles or alloy steel, cast steel, please consult us.
Technical Parameter
| Model No. | Working range (OD mm) | Wall thickness(mm) | “Tool stroke (mm)” | Rated Power (KW) | Rotating Speed(rpm) |
| ISC-53II | 14-53 | ≤ 12 | 0-20 | 1.1 | 0-58 |
| ISC-76II | 25-76 | ≤ 12 | 0-20 | 1.1 | 0-54 |
