Quiet Portable Electric Pipe Machine For Multiple Hole Cutting

Hongli Electric Pipe Machine Portable Electric Pipe Hole Cutting Machine

Product Description

1. Model JK114 is designed for pipe hole cutting up to 114 mm into steel pipe.

2. The multiple hole sizes allow the use of mechanical fittings for branching unpressurized pipe lines.

3. Light weight for easy transportation, ideal for the hole cutting in small sizes.

4. Induction motor ensures quiet working performance.

Specifications

Cutting Capacity: up to 4” (114 mm)

Pipe Mounting Capacity: 1 1/4”-8” (32 mm-220 mm)

Drill Chuck Capacity: 3-16 mm

Drill Chuck Speed: 110 RPM (no load)

Motor: induction type, 550 W

Height: 513 mm

Length: 260 mm

Width: 248 mm

G.W./N.W.: 17.2 KG/16 KG

Ordering Information

HS:8462490000

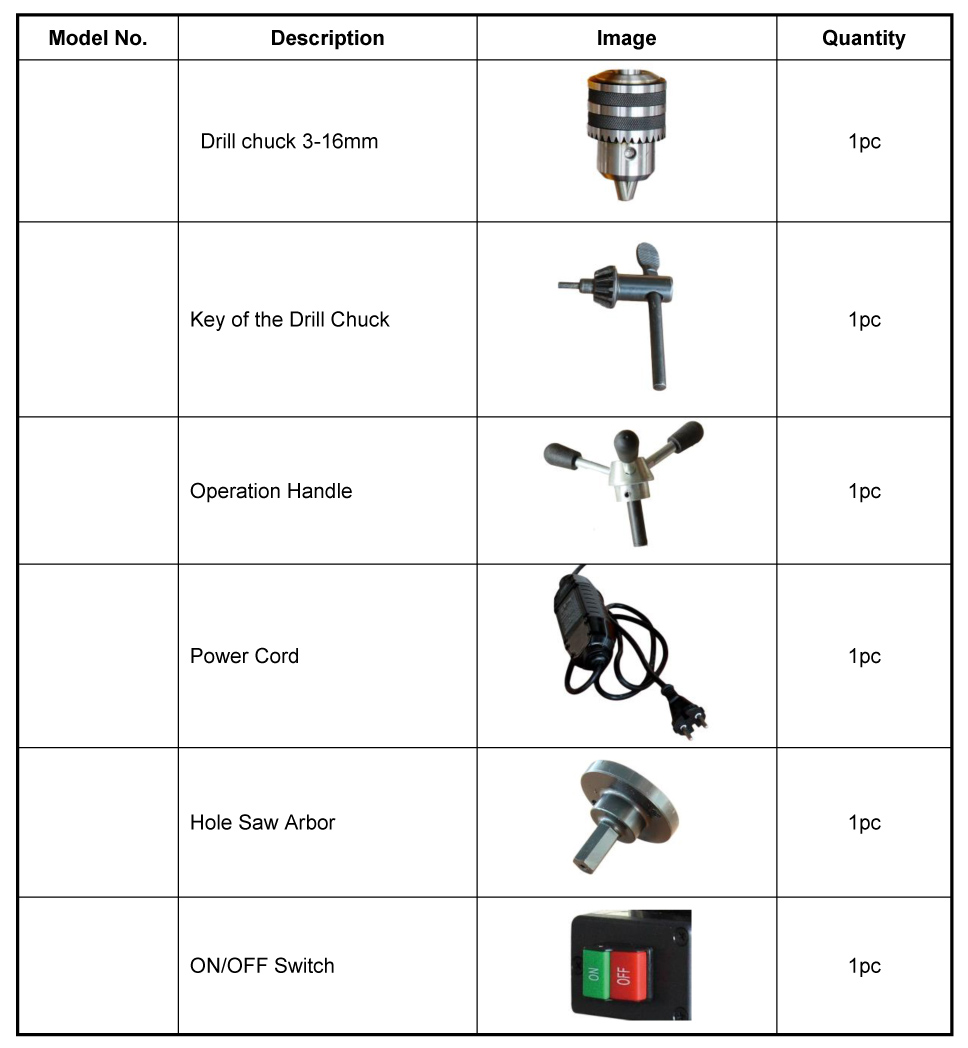

Standard Spares for Hole Cutting Machine JK114

Optional Spares for Hole Cutting Machine JK114

Product Description

1. The Hongli Model JK150 pipe hole cutter is designed to cut holes up to 152 mm into steel pipe.

The multiple hole sizes allow the use of Mechanical fittings for branching unpressurized pipe lines.

2. The JK150 has a 5/8” (16 mm) capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors.

3. An integral motor and gear reduction optimizes performance of large diameter hole saws.

4. The two feed handles allows the operator to use the Hole Cutting Tool from either the left or right side.

Specifications

Cutting Capacity: up to 6” (152 mm)

Pipe Mounting Capacity: 1 1/4”-12” (30 mm-300 mm)

Drill Chuck Capacity: 3-16 mm

Drill Chuck Speed: 110 RPM (no load)

Motor: universal, 1500 W

Height: 303 mm

Length: 340 mm

Width: 315 mm

Ordering Information

HS:8462490000

Standard Configuration of JK150 Hole Cutting Machine

Optional Spares for Hole Cutting Machine JK150

The color of hole saws also can be yellow like below
